Gabion-a double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, and filled with stone at the project site to form flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.

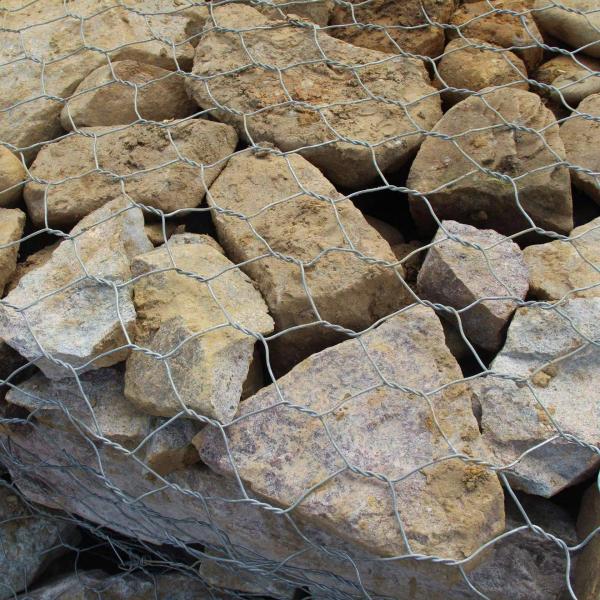

Gabions baskets are rectangular baskets made of heavily galvanized, double twisted, steel woven wire mesh. The single unit constructed baskets are assembled, laced together and then filled with stone to form a monolithic structure. Gabions and Reno mattresses are used for retaining walls, sound barriers, channel linings, slope stabilization, dams and weirs. They are particularly effective in restoring the environment and promoting vegetation growth.
Gabion Mattress-a double-twisted wire mesh container uniformly partitioned into internal cells with relatively small height in relation to other dimensions, having smaller mesh openings than the mesh used for gabions; revet mattresses are generally used for riverbank protection and channel linings.
| Sizes for Gabion and Gabion Mattress |
| L (m) | W (m) | H (m) | # of Cells |
| 2 | 1 | 1 | 2 |
| 3 | 1 | 1 | 3 |
| 4 | 1 | 1 | 4 |
| 2 | 1 | 0.5 | 2 |
| 3 | 1 | 0.5 | 3 |
| 4 | 2 | 0.3 | 4 |
| 6 | 2 | 0.3 | 6 |
| Standard Mesh Wire |
| Mesh Type | D (mm) | Mesh Tolerance | Mesh Wire (mm) |
| 8x10 | 83 | ±10% | 2.70, 3.00mm |
| 6x8 | 64 | ±10% | 2.20mm |
| Standard Wire Diameters |
| Wire Diameter ø mm | 2.20 | 2.70 | 3.00 | 3.40 | 3.80 |
| Wire Tolerance (±) ø mm | 0.10 | 0.10 | 0.10 | 0.10 | 0.10 |
| Min. Qty of Zinc gr/m2 | 214 | 244 | 259 | 259 | 275 |
Double-twisted wire gabions and gabion mattresses are classified according to coating, as follows: Style 1, consists of double-twisted wire mesh made from wire which is zinc coated before being double-twisted into mesh. Fasteners, lacing wire, and stiffeners are produced from zinc-coated wire.
Style 2, consists of double-twisted wire mesh made from wire which is coated with Zn-5A1-MM before being double-twisted into mesh. Fasteners, lacing wire, and stiffeners are also produced from Zn-5A1-MM coated wire.
Style 3, consists of double-twisted mesh, lacing wire, and stiffeners as Style 1 & 2 and overcoated with PVC. Fasteners shall be of stainless steel wire.
